Equipment catalogue

Mineral processing equipment — thickeners, screens, agitators & dosing plants

Use this page as the catalogue hub. Open each product for technical detail and an enquiry link, or jump to a family section below.

Ø100m

Max thickener diameter

7.5M Nm

Drive head rating

5,000 m³

Agitator tank volume

11,000 kg/d

Flocculant capacity

Product pages

Each product has dedicated technical content, specifications and an enquiry form link.

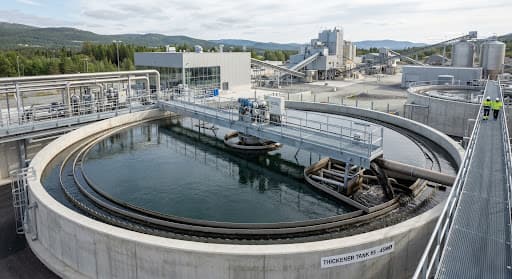

MTP thickener tank Ø45m with rotating bridge mechanism at an operating mineral processing plant

Sedimentation

High-Rate Thickeners

Mineral Tech Pro is a high rate thickener manufacturer in India supplying mineral processing thickeners and slurry thickeners with innovative feed dilution, rake lifting and drive heads rated up to 7.5 million Nm — diameters up to 100m.

View product

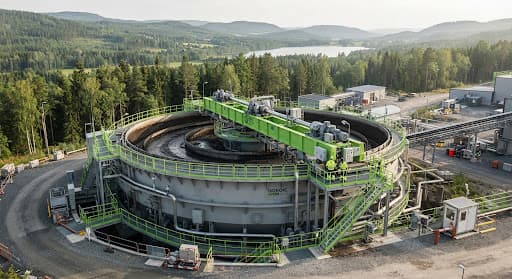

Nordic Green branded high-rate thickener with lime-green bridge railings in a forested landscape

Sedimentation

Conventional Thickeners

Mineral Tech Pro is a conventional thickener manufacturer supplying mineral thickeners and clarifiers for settling duties — bridge-mounted designs up to 35m, with bridge or centre-column options for 35–40m.

View product

High-G multi-slope banana vibrating screen deck for mineral classification and dewatering

Screening

Vibrating Screens

Mineral Tech Pro is a vibrating screen manufacturer in India supplying mineral screening equipment — linear vibrating screens, sizing screens, de-watering, de-sliming, scalping and high-frequency decks for light to heavy duty.

View product

DewaterMax high-G dewatering screen producing low-moisture mineral cake

Screening

Dewatering Screens

Mineral Tech Pro is a dewatering screen manufacturer in India supplying mineral dewatering screens and dewatering vibrating screens engineered for moisture reduction, water recovery and stable cake discharge.

View product

Rubber-lined SAG and ball mill trommel with quick-clamp composite panels

Screening

Trommel Screens

Mineral Tech Pro is a trommel screen manufacturer in India and trommel screen supplier for mineral processing trommels and linear trash screens used in plant protection and coarse classification.

View product

Top-entry hydrofoil slurry agitator installed in a large leach tank up to 5,000 m³

Mixing

Industrial Agitators

Mineral Tech Pro is an industrial agitator manufacturer in India supplying slurry agitators, top entry agitators and mineral processing mixers from 0.37 kW to 250 kW for tanks from 0.1 to 5,000 m³.

View product

Multi-cell attrition scrubbing units for spodumene and silica surface activation

Mixing

Attrition Scrubbers

Mineral Tech Pro is an attrition scrubber manufacturer in India supplying mineral attrition scrubbers and attrition scrubbing equipment for surface cleaning ahead of flotation or further processing.

View product

Skid-mounted continuous flocculant preparation and dosing plant with PLC automation

Reagent dosing

Flocculant Dosing Plants

Mineral Tech Pro is a flocculant dosing system manufacturer supplying flocculant preparation plants, polymer dosing systems and automatic flocculant dosing plants — 10 to 11,000 kg/day dry powder, skid-mounted, automated or manual.

View product

UP TO Ø100m

Sedimentation — Thickeners & Clarifiers

Mineral Tech Pro designs thickeners and clarifiers specifically for mineral industry applications. Heavy-duty drive units, diameters up to 100m, and an innovative feed dilution system. Up to 35m: central bridge-mounted drive. 35–40m: bridge or central column by site economics. Mechanical or hydraulic drives up to 20m; hydraulic above 20m. Rake lifting on all designs.

Diameter: Up to 100 m
Drive torque: Up to 7.5M Nm
Materials: CS / SS / Special steel
Mount options: Bridge or centre column

High-Rate Thickeners Conventional Thickeners

1–4 DECKS

Screening Systems

Custom vibrating screens for unique mounting and feeding arrangements. Driven by twin or multiple vibrator motors or exciter gearboxes. Applications include de-watering, de-sliming, high-frequency, scalping, sizing, pan feeders, and linear trash screens. Modular construction with replaceable parts, adjustable suspension, and circular or linear motion.

Deck count: 1 to 4 decks
Motion: Circular or linear
Media: Woven wire / PU / Rubber
Duty: Light to heavy

Vibrating Screens Dewatering Screens Trommel Screens

0.37–250 kW

Mixing Technology — Agitators & Attrition

Complete range of top-entry mixers/agitators for chemical, mineral, fertilizer, food, environmental, metallurgical, and pharmaceutical use. Standard models from 0.37 kW portable units to 250 kW heavy-duty for 0.1–5,000 m³. Impeller options include high-efficiency hydrofoil (Hiflo), 45° and 32° pitch turbines, and flat blade turbines. Construction in SS304/SS316 with optional rubber or FRP coatings.

Power: 0.37 to 250 kW
Vessel volume: 0.1 to 5,000 m³
Impellers: Hydrofoil / Pitch / Flat
Materials: SS304 / SS316 / lined

Industrial Agitators Attrition Scrubbers

10–11,000 kg/d

Reagent Preparation & Dosing

Turnkey modular flocculant preparation and dosing systems that mix bagged dry powder with process water to the desired strength. Fully automated or manual. Capacities from 10 to 11,000 kg/day of dry powder. Includes hopper with bag breaker, eductor-blower conveyance, wetting head, mixing and holding tanks, gentle agitators, VFD dosing pumps, and local PLC control. Skid-mounted for easy plant installation.

Capacity: 10–11,000 kg/day
Modes: Automated / Manual
Mounting: Skid-mounted
Controls: Local PLC panel

Flocculant Dosing Plants

Need a thickener drive head or retrofit?

Compare Series A–Eb drive heads, replacement compatibility and selection guidance on the drive matrix page.

Thickener drive heads Request a quote
